Affixing Tip Out Tilt Bins To Rails and Frames


1) Having removed transparent compartments, insert screw corresponding to screw holes in tip out tilt bin housing. 2) Insert screws and screw into disk on back of tip out tilt bin housing. 3) Insert disk into frame or […]

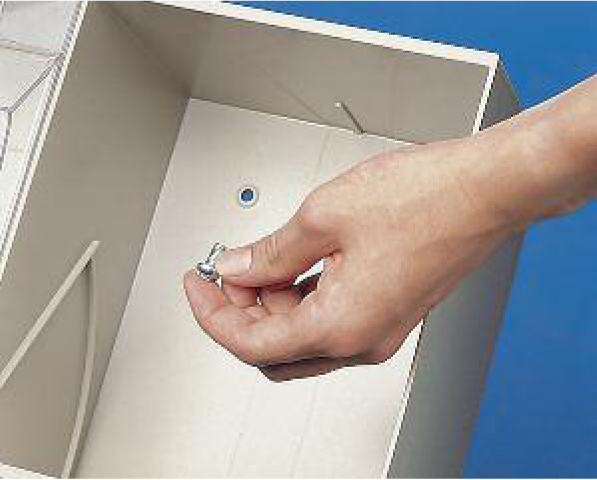

Affixing Clear tip out tilt bin - Step 1
1) Having removed transparent compartments, insert screw corresponding to screw holes in tip out tilt bin housing.

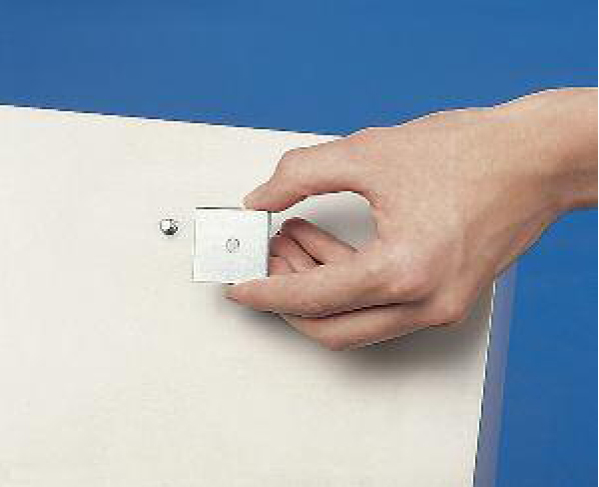

Affixing Clear tip out tilt bin - Step 2
2) Insert screws and screw into disk on back of tip out tilt bin housing.

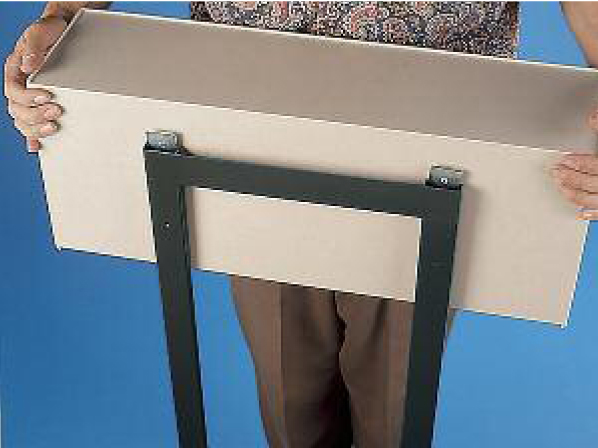

Affixing Clear tip out tilt bin - Step 3
3) Insert disk into frame or rail.

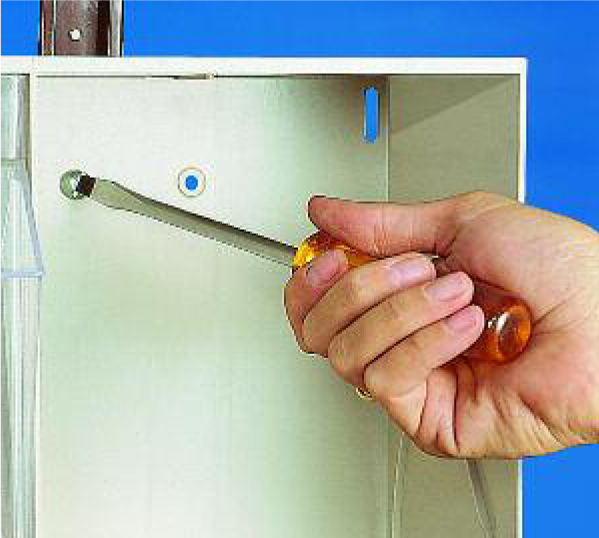

Affixing Clear tip out tilt bin - Step 4
4) Once in place, tighten screws to affix tip out tilt bin to frame rail.
